R4W43A - HPE Aruba Networking 560 Series Outdoor Access Points
R4W43A - HPE Aruba Networking 560 Series Outdoor Access Points

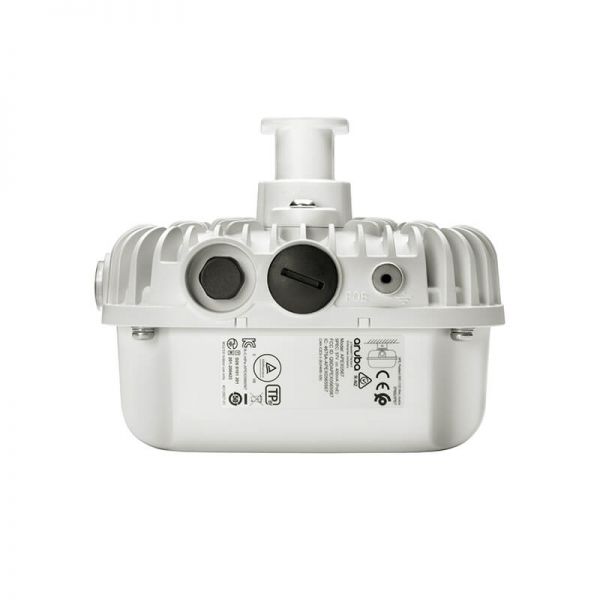

The HPE Aruba 560 Series Outdoor Access Point (R4W43A) is a weatherproof Wi-Fi 6 AP designed for outdoor and harsh environments, delivering reliable wireless connectivity for campuses, warehouses, and industrial sites.
Key Highlights
-
Outdoor-optimized, temperature-hardened design for extreme conditions
-
Supports Multi-User MIMO (MU-MIMO) for high-efficiency wireless performance
-
Intelligent power management with 802.3at PoE+ support
-
Built-in Aruba Advanced Cellular Coexistence (ACC) and Target Wake Time (TWT)
Key Specifications
| Specification | Details |
|---|---|
| Product Code | R4W43A |
| Wireless LAN Standard | 802.11ax (Wi-Fi 6) |
| Antennas | Internal |
| Maximum Throughput | 1.49 Gbps (aggregate) |
| Power over Ethernet | 802.3at PoE+ |
| Maximum Power Consumption | 15.6 W |
| Operating Temperature | -40°C to +55°C |
| Operating Humidity | 5% to 95% non-condensing |
| Dimensions (W×D×H) | 16.5 × 16.5 × 11 cm |
| Weight | 1.1 kg (approx.) |
| Deployment | Outdoor / Harsh Environment |
| Management | Aruba Central / ArubaOS |
Key Features & Benefits
-
Weatherproof & Temperature-Hardened: Provides reliable operation in extreme outdoor conditions
-
MU-MIMO Technology: Supports multiple concurrent users with optimized throughput
-
Advanced Cellular Coexistence (ACC): Minimizes interference from nearby cellular devices
-
Target Wake Time (TWT) & Intelligent Power Management: Enhances energy efficiency for IoT and mobile devices
Model Options / Variants
-
Standard R4W43A model; single variant optimized for outdoor Wi-Fi 6 deployments
